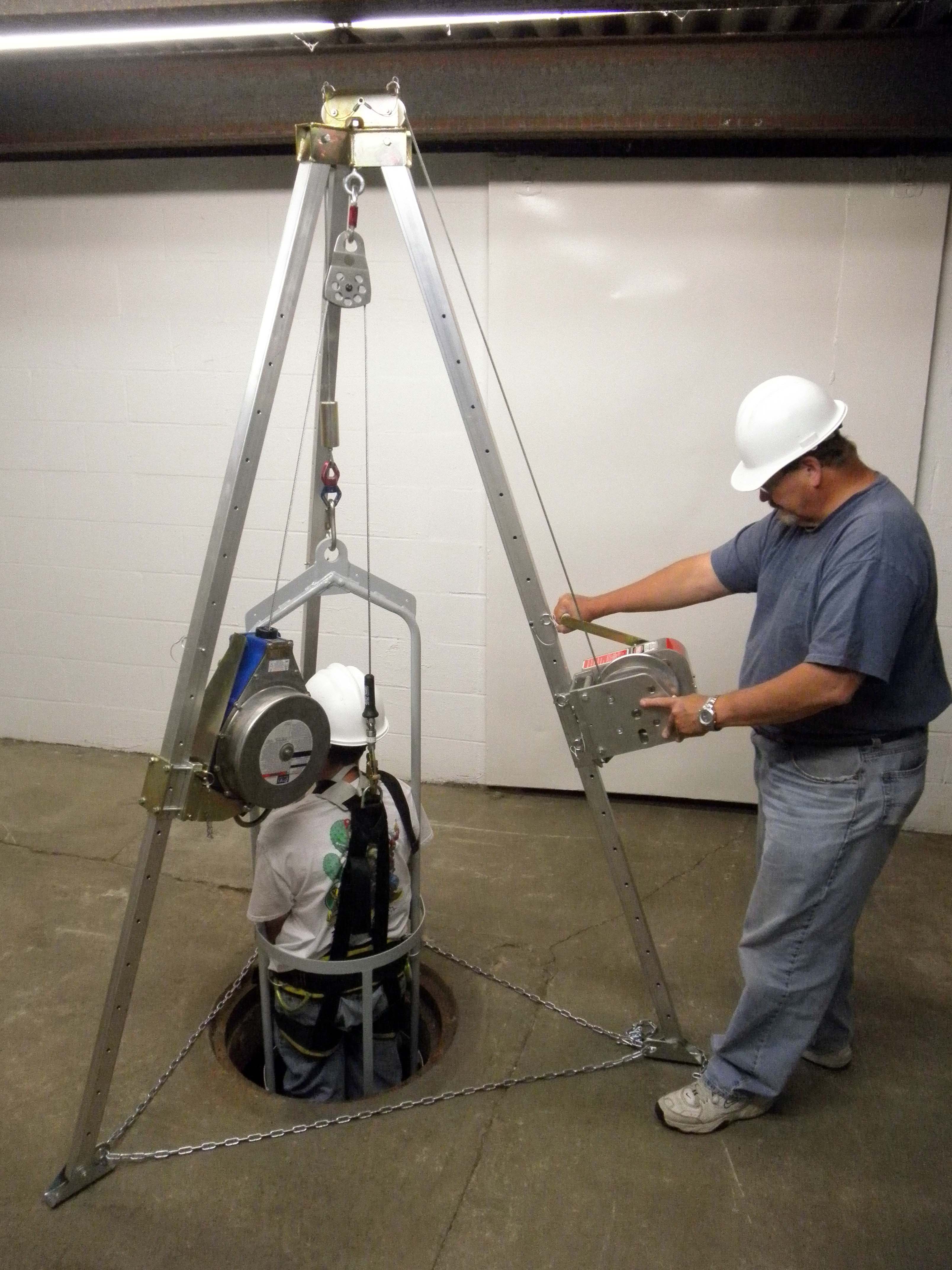

Shown with optional 3-Way Self Retracting Lifeline and Split Sheave

Manual Tripod Hoist Confined Space Entry

Features:

  • Lightweight and Portable Manual Winch Retrieving System
  • Three Pieces with Quick Setup and Tear Down
  • Adjustable Height to Fit Different Applications
  • Up to 15 FPM Travel

Capacity: 300 Lbs.

Construction:

  • Two Pieces
  • Tripod: Welded Steel Head, Yellow Zinc Plated, with Nylon Rollers, Aluminum Legs, and Safety Chain
  • Weight:38 lbs.
  • Height: 62-5/16” Minimum, 104” Maximum
  • Adjustments: 3.79” Vertical
  • Winch: Aluminum Side Plates, Aluminum Drum with Alloy Steel Shafts and Machined Gears
  • Equipped with a Primary Brake on the Input Shaft and a Secondary Brake on the Drum.
  • Weight: 28 LBS. without wire rope
  • Wire Rope: 3/16” 7 x 19 Galvanized, Weight: .06 LBS per Foot 3/16” 7 x 19 Stainless Steel Available

See spec sheet for Model Numbers, Travel and Weight

Product Specifications
C:Documents and SettingsMichael BurlingameMy DocumentsDrawin

SKU: 139-101 Series Categories: ,

Product Description

Tripod Hoist: Welded Steel Head, Yellow Zinc Plated, with Nylon Rollers, Aluminum Legs, and Safety Chain
